Metal Square Tubing and pipes

Place of Origin : China

Brand Name : Torich

Certification : IS09001 ISO14001 TS16949,DNV

Model Number : ASTM A500

MOQ : 5 TONS

Price : Negotiation

Packaging Details : In bundles

Delivery Time : 30-60DAYS

Payment Terms : T/T L/C

Supply Ability : 50000 TONS PER YEAR

Material : GrA, B, C

Dimensions (L x W x H) (mm) : O.D. :20-20 to 500-500 W.T.:1-24mm L:max12000mm

Application : Building

Grade : Q235

Thickness : 2.5mm-5mm

Standard : ASTM

Length : 1m -12m or as requirement

Contact Now

Standard: ASTM A500 Metal Square Tubing
Cold-Formed Welded and Seamless Carbon Structural Tubing in Rounds and Special Shapes

Cold-formed structural tubing applications: for construction of railways, agricultural machinery, and buildings etc

Size range:

Square metal tubes O.D. :20-20 to 500-500 W.T.:1-24mm L:max12000mm
Steel Rectangle tubes O.D. :20-30 to 400-600 W.T.:1-24mm L:max12000mm

Chemical Requirement
Element GradeA, B and D Grade C
Heat Analysis Product Analysis Heat Analysis Product Analysis
Carbon, max 0.26 0.3 0.23 0.27
Manganese,max 1.35 1.40 1.35 1.4
Phosphorus,max 0.035 0.045 0.035 0.045
Sulfur,max 0.035 0.045 0.035 0.045
Copper,min 0.2 0.18 0.2 0.18

Tensil requirements
Round Structural Tubing
GradeA Grade B Grade C Grade D
Tensil strengths,min,psi(Mpa) 45 (310) 58(400) 62(425) 58(400)
Yield strength,min,psi(Mpa) 33(230) 42(290) 46(315) 36(250)
Elongation in 2 in.(50mm) min,% 25 23 21 23
Shaped Structural Tubing
GradeA Grade B Grade C Grade D
Tensil strengths,min,psi(Mpa) 45 (310) 58(400) 62(425) 58
Yield strength,min,psi(Mpa) 39(270) 46(315) 50(315) 36(250)
Elongation in 2 in.(50mm) min,% 25 23 21 23

Size list:

3/8" x 3/8"

1/2" x 1/2"

5/8" x 5/8"

3/4" x 3/4"

7/8" x 7/8"

1" x 1"

1-1/8" x 1-1/8"

1-1/4" x 1-1/4"

1-1/2" x 1-1/2"

1/2" x 1/2"

1-5/8" x 1-5/8"

1-3/4" x 1-3/4"

2" x 2"

2-1/4" x 2-1/4"

2-1/2" x 2-1/2"

2.53" x 2.53"

3" x 3"

3.030" x 3.030"

3-1/2" x 3-1/2"

4" x 4"

4-1/2" x 4-1/2"

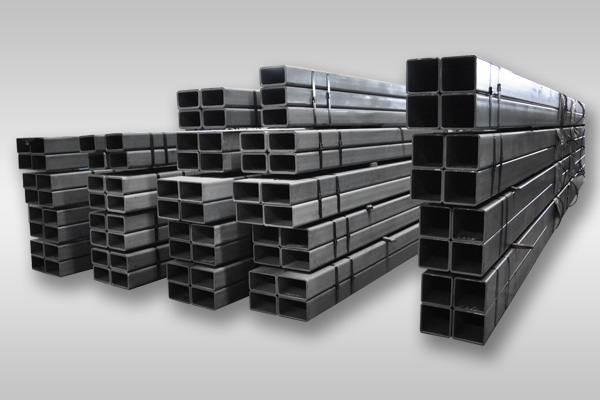

Metal Square Tubing and pipes Metal Square Tubing and pipes

Application:

Metal Square Tubing and pipes Metal Square Tubing and pipes
